传统烘箱内部，温度分布不均匀造成工艺可重复性不高、且影响薄膜质量

放在Cassette里的Wafer里外冷热不均，加热所需时间不同，同时加热过程中Substrate会暴露在大量的污染颗粒下。



传统烘箱内部，由于受热为从外到里，光刻胶表面会出现起泡等现象，导致薄膜质量降低。

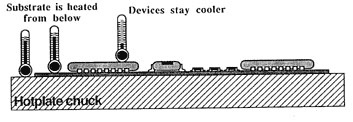

使用热板无表面起泡现象，使薄膜质量更均匀。

Cee热板3种工作模式，

 接近式
 接触式
 真空模式。

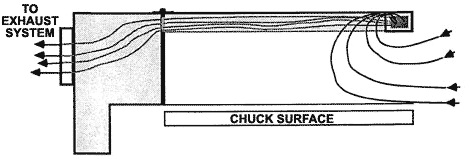

The selection of the bake time parameter plays an important role in the reproducibility of the bake process. Substrate thermal properties and the choice of bake method greatly affect the amount of time necessary for the substrate and therefore film temperature to stabilize during the bake. Thicker substrates and the use of proximity bake methods will increase the time necessary for the film to reach its final temperature. It is important that most of the baking action in the film takes place after this temperature is reached. A silicon wafer will reach a stable temperature within a few seconds and so it is traditional to adjust a photoresist bake processes to be completed in 60-90 seconds with an appropriate bake temperature


For thicker substrates such as photomasks and ceramic modules the increased time necessary to heat the larger mass of the substrate results in bakes times approaching five minutes. It should be noted that these substrates can be processed with higher temperature and much shorter bake times but reproducibility may suffer. If the bake time is too short then a significant amount of the actual bake process will take place during the loading and unloading steps as well as while the substrate is cooling after removal from the hotplate. This is an unstable condition since it is very difficult to exactly reproduce conditions during these steps.

In general the temperature-time relationship in a bake process can be taken as a "dose" of the (temperature) x (time) product. Increasing the bake temperature results in a need for decreasing bake time. The limits for both of these parameters can be considered to be reached when the process is no longer reproducible or when the physical temperature limitations of the resin or substrate have been reached.
